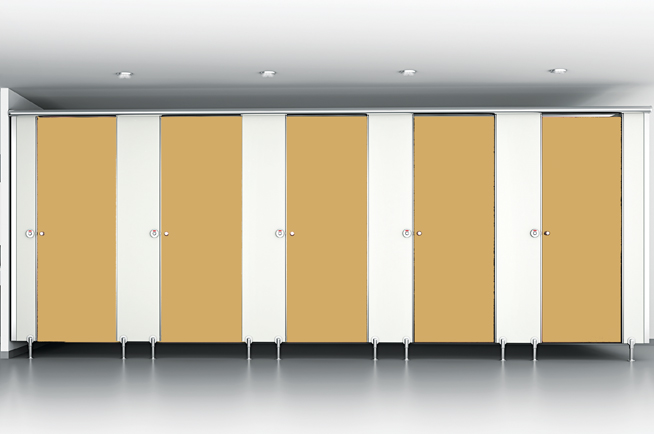

Stainless Steel Hardware With Aluminium

Megha Systems' most usable series is developed for providing higher endurance and spectacular design. Magnificent design united with great functional features makes it an innovative restroom series offering uncompromised quality at an economical price along with extraordinary benefits. Engineered with 12mm high pressure Compact Laminate, this model comes with the combination of stainless steel hardwares with extruded anodised aluminum top rail and fixing channels. Thus, it's a valuable choice for users who desire a highly adaptable restroom space, preferred across the globe for its budget effective product detailing and matchless quality.

Here's to higher endurance integrated with a fabulous design. Nexus Grand is a utopian restroom series from Team Interior Solutions that provides unflinching value for money with stupendous benefits. Engineered with 12mm thick high pressure Compact Laminate, this model is an amalgamation of stainless steel hardware with extruded anodized aluminum top rail and fixing channels. A definite "yes" for people who look for a remarkable restroom space that has created a niche for itself in the international market for its cost effective yet unmatched quality..


The adjustable foot that supports the panels is made from stainless steel (Grade 304) and its base is anchored to the floor with nylon plug, fixed into floor with stainless steel screws. There is a floor clearance of 150 mm. Aluminum U-channels are used to attach with the divider panels to the wall as well as the mid panel with stainless steel (Grade 304) screw inserts. Aluminum top rail anodized in stainless steel colour is used to fix the panels at the top. Doors are incorporated with the noise absorbing tape to reduce the noise effect. All other fittings like hinges, coat hook, adjustable foot and lock set/latch indicator is provided in stainless steel.

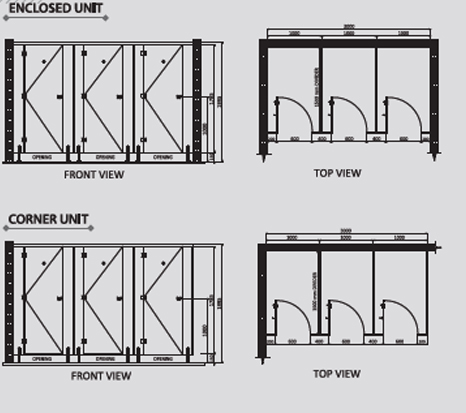

Stainless Steel With Aluminium Dimension Detailing

Standard Dimensions General (mm) Physically Challenged (mm)
Width of Cubicle 1000 1500
Depth of cubicle 1550 1750
Height of entire Cubicle 1995 1995
Width of Door 600 900
Height of Door 1785 1785
Ground Clearance 150 150

Stainless Steel With Aluminium Hardwaring Detailing
